Analysis of eddy current retarder components

The eddy current retarder consists of two parts: the mechanical part and the electrical control system.

The mechanical part is composed of three parts: bracket assembly, rotor assembly and stator assembly.

The electrical system part is composed of pressure switches, relays, control boxes, indicator lights, manual switches and wiring harnesses.

• Stator

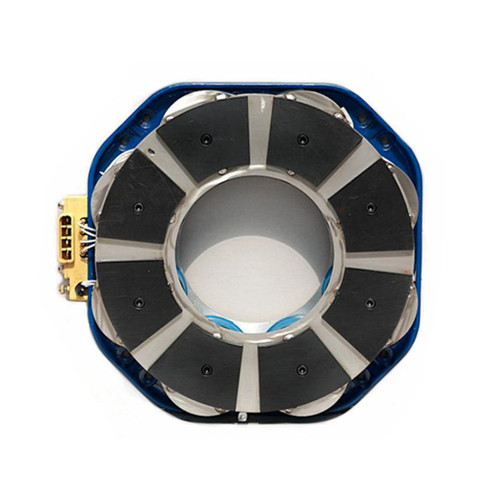

Stator for eddy current retarder

• Rotor

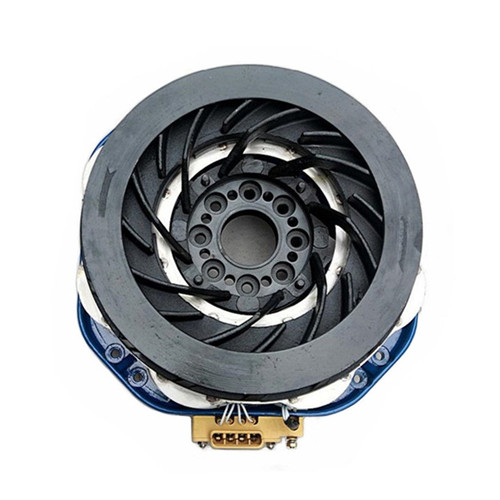

Rotor of eddy current retarder

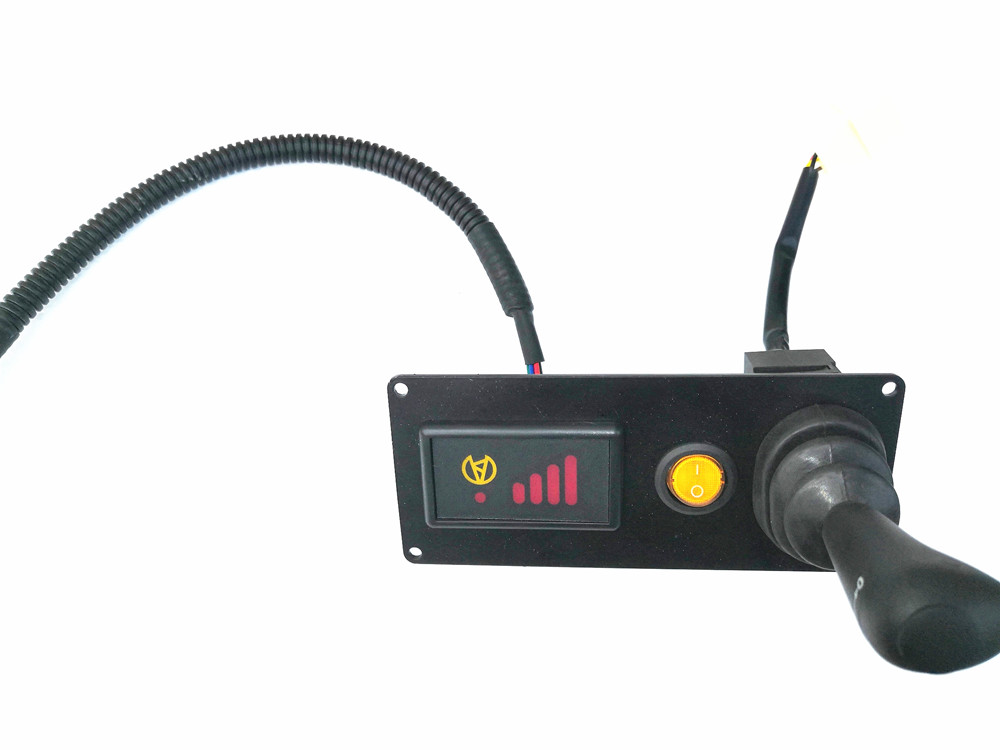

• Manual switch




• Pressure switch

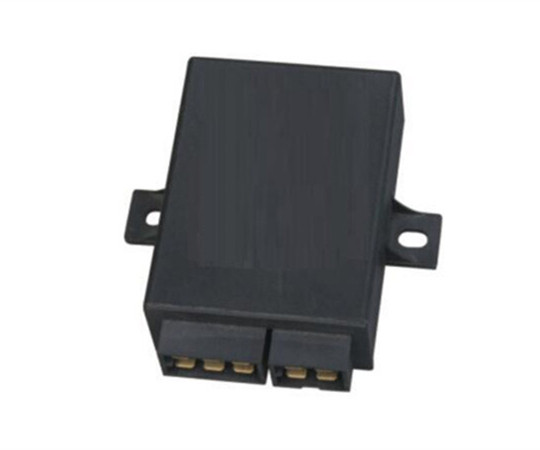

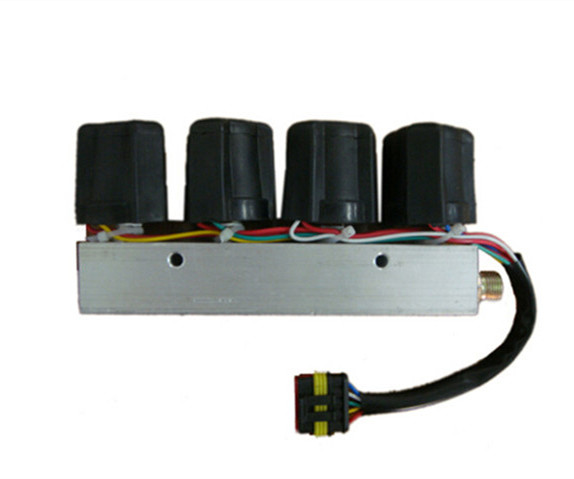

• Relay

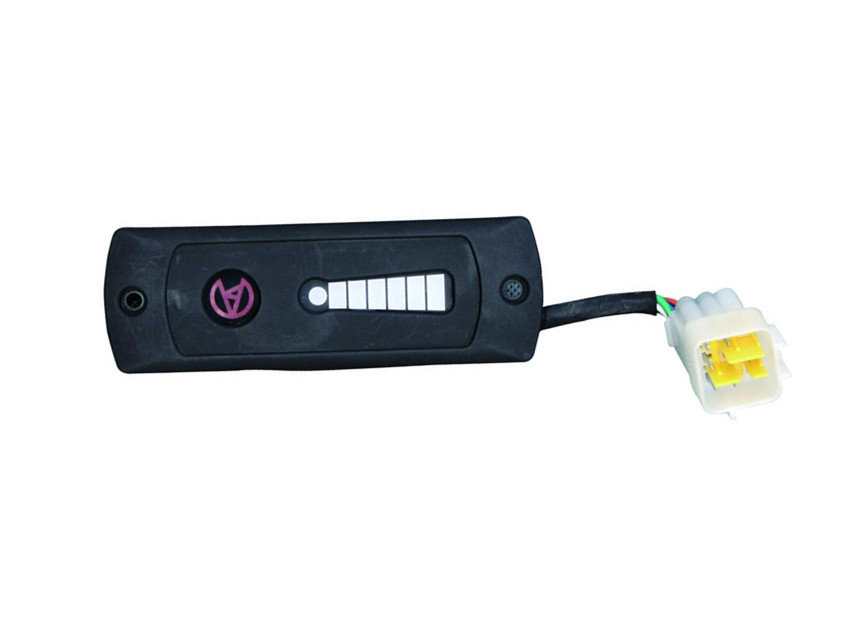

• Indicator light

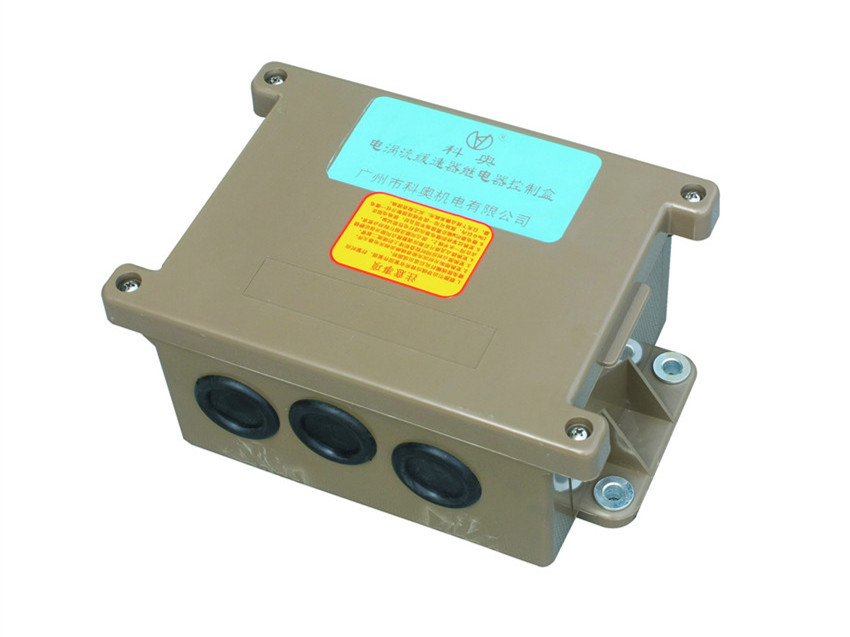

• Control box
